Screw Feeders

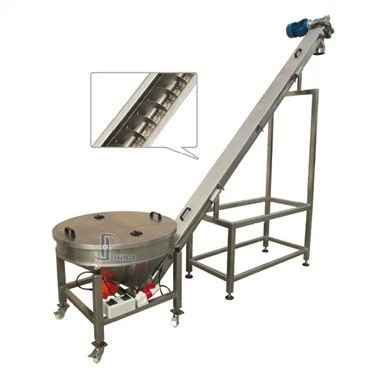

Screw feeders are designed to meter bulk materials and are typically located at the beginning of a process. Capacity or feed rate can be accurately controlled with screw feeders. Screw feeders are available in a variety of sizes, lengths, configurations and materials of construction.
Specifications:
Model | GS-2S2 | GS-2S3 | GS-2S5 | GS-2S7 | GS-2S8 | GS-2S12 |
Lifting Capacity | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 12 m3/h |
Pipe Diameter | φ102 | φ114 | φ141 | φ159 | Φ168 | Φ219 |
Total Power | 0.61KW | 0.81W | 1.56KW | 2.26KW | 3.06KW | 4.06KW |
Total Weight | 100KGS | 130 ΚΙΛΆ | 170KGS | 200KGS | 220KGS | 270KGS |
Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L |
Lifting Height | 1800-2000mm as standard ,500-5000mm can be custom-made | |||||
Lifting Angle | 45 degree as standard, 30-60 degree can be custom-made | |||||
Hopper Volume | 100/200L as standard, 50-2000L can be custom-made | |||||
Product Contact Parts | Fully stainless steel construction and SUS304 for product contact parts as standard ,SUS316 for product contact parts can be custom-made | |||||
Conveying Screw | Full welded and well polished food grade type as standard, tack welded type as optional | |||||
Power Supply | 3P 208-415V 50/60HZ | |||||
Frequently asked questions:
Q1:Are you factory or trading company?
A: We are factory located in shanghai china with 20 years manufacturing experience.
Q2: What machines you can make?
A: Auger filler, screw and vacuum feeder, Ribbon and paddle mixer, Vertical form fill and seal powder packaging machine, Complete Powder bottling/canning Production line etc.
Q3: Can i visit your factory and send our team for training before order delivery?
A: Yes, sure! Welcome to visit us and get a training or make FAT!
Q4: What's your warranty and after-sale service?
A: One year warranty against shipping date ,our engineer can be at your site for commissioning and installation or via whatsapp/skype/wechat to provide remote technical support.
Q5 : What is the payment term?
A: 30 percent T/T deposit and 70 percent T/T before delivery or you can come to inspect the machines before delivery then make final payment!
Q6:How long is the delivery time?
A: Single machines order 20-40days, Production line order 60-90days.
Q7:How to reach you?
A:By Cell Phone& Wechat& Whatsapp 0086-186-2117-5508
Or By Email:international2@dahepack.com
